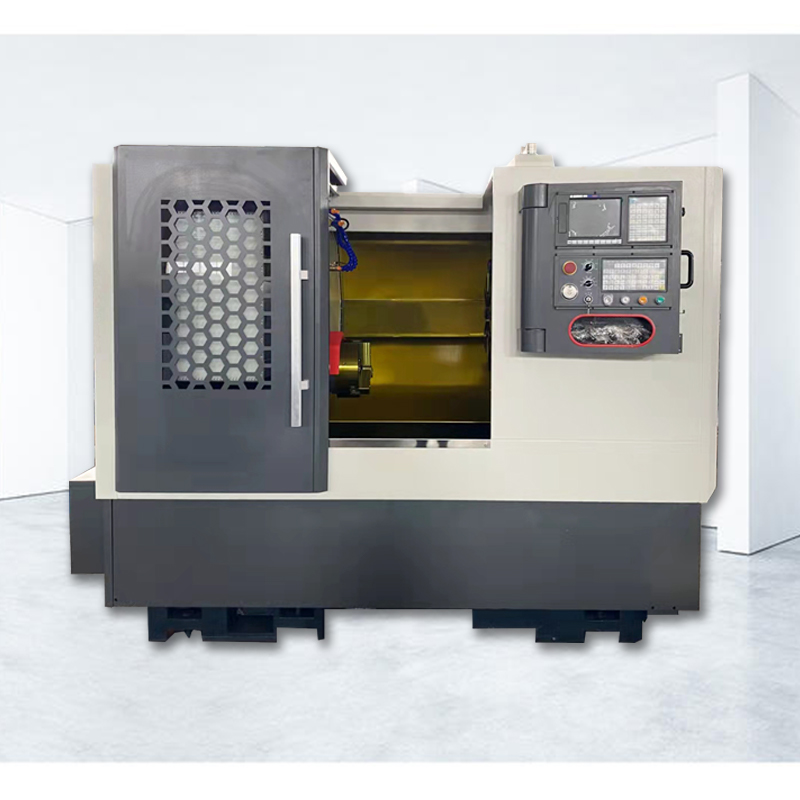

Slant bed cnc lathe machine ALTCK50A can process auto parts

The cnc slant bed lathe machine can play a good advantage in the mass production of parts, and can process complex workpieces such as linear cylinders, oblique cylinders, arcs and various threads.

Product Description

CNC lathe machine slant bed is a high-precision and high-efficiency cnc lathe slant bed machine, which can be configured with multi-station turrets or power turrets, and has a wide range of applications. Metal cnc lathe machine has strong advantages in mass production.

Features of CNC lathe turning machine

1. The transmission screw of the metal slant bed cnc lathe machine is a high-precision ball screw, and the transmission gap between the screw and the nut is very small, which can greatly improve the precision of the high precision cnc lathe.

2. The cross-sectional area of the slant bed cnc lathe machine is larger than that of the flat bed of the same specification, that is, the resistance to bending and torsion is stronger, the spindle runs relatively smoothly, and it is not easy to cause cutting vibration.

3. Due to the gravity, the cnc lathe machine is not easy to generate winding tools, which is conducive to chip removal; at the same time, with the central screw and guide rail protection sheet metal, it can avoid chips from accumulating on the screw rod and guide rail.

4. The increase in the number of knives of the cnc mini metal lathe machine and the configuration of the automatic chip removal machine are actually laying the foundation for automatic production and greatly improving the production efficiency.

Application of cnc lathe machine slant bed

CNC horizontal lathe is suitable for automobile, motorcycle, electronics, aerospace, military, petroleum and other industries. It can process the conical surface, arc surface, end surface and various metric and inch threads of rotating parts for batch, efficient and high-precision automatic processing. , Adopt 45 degree high rigidity integral bed, high precision spindle unit, adopt Taiwan line rail, ensure that the center of automatic cnc lathe high rigidity spindle is close to the operator, and it is more convenient to load and unload workpieces.

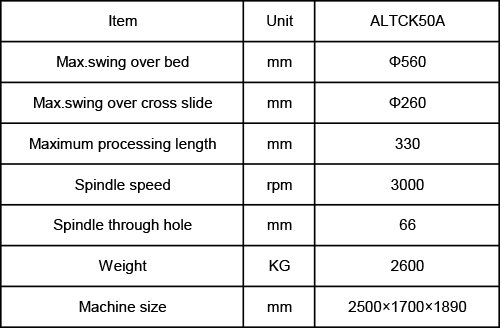

Technical Parameters
