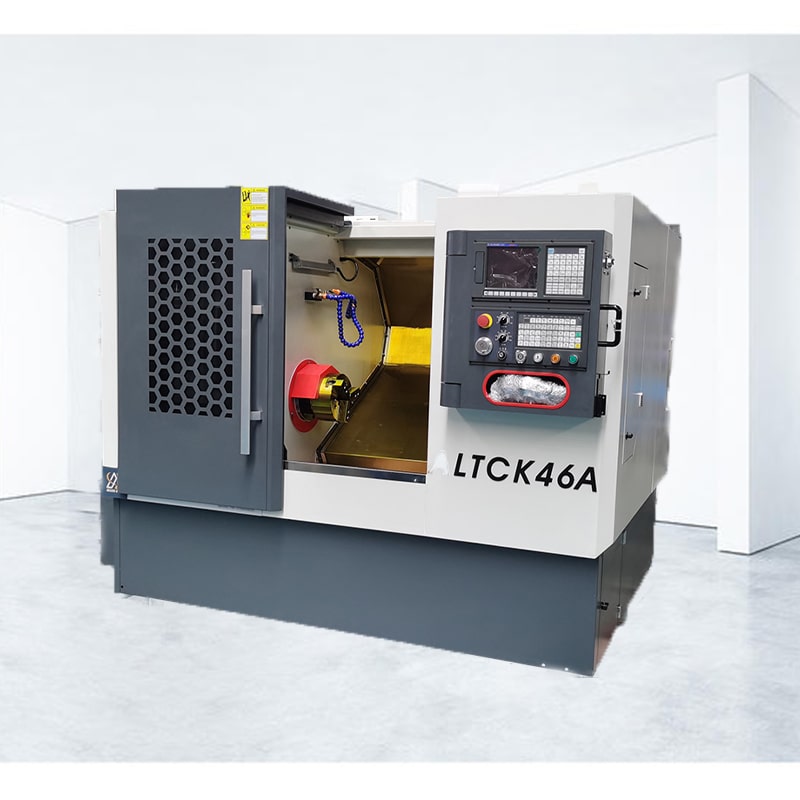

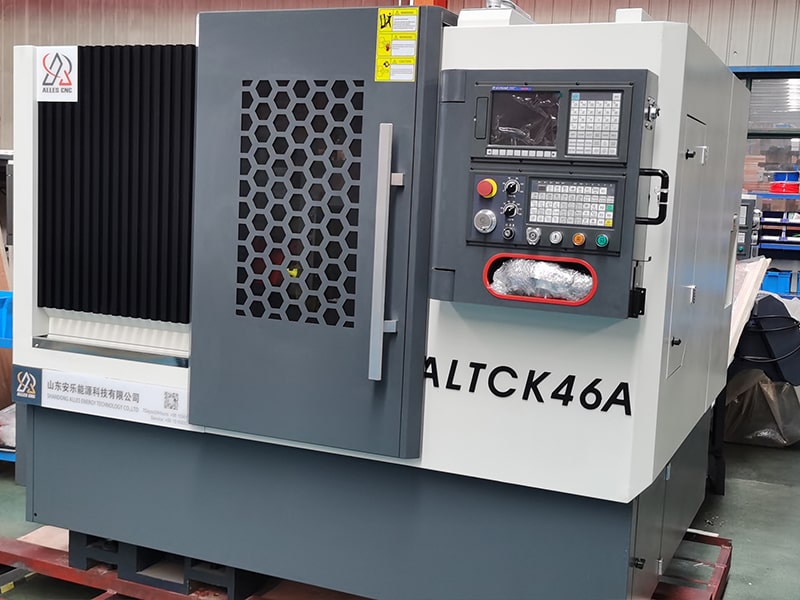

Metal lathe ALTCK46A inclined bed CNC lathe

Automatic lathe is widely used in hardware manufacturing, pneumatic parts, mobile phone parts, information industry, biological industry, auto parts, aerospace and other defense industries.

Product Description

Metal lathe is widely used in heavy turning with high productivity. There are many kinds of inclined bed lathes with different specifications and stable processing quality

Feature:

1. The automatic lathe adopts CNC 45° inclined bed structure, which greatly improves the bending rigidity and torsional rigidity of the machine tool when it is working, and has high stability. Provides a guarantee for the machining accuracy of the machine tool

2. The slant bed lathe is used for the processing of precision and complex rotary parts, and can be applied to the processing of curved surfaces, stepped surfaces, conical surfaces, spherical surfaces, grooves, threads and complex curved surfaces.

3. Metal CNC lathes have good reliability, strong rigidity, high precision, long life and fast speed.

The rotary tower cutter is selected, with high positioning accuracy and small deformation in heavy cutting.

Uses of CNC lathes:

Automatic CNC lathes are suitable for automation equipment such as aerospace, automobile industry, precision molds, defense industry, shipbuilding, new energy, textiles, electronics, medical and cutting-edge industries.

Video

Product Specifications:

Item	Unit	ALTCK46A
Max.swing over bed	mm	Φ460
Max.swing over cross slide	mm	Φ170
Maximum processing length	mm	350
Spindle speed	rpm	3500
Spindle bore	mm	56
Weight	KG	2600
Machine size	mm	2500X1700X1890
