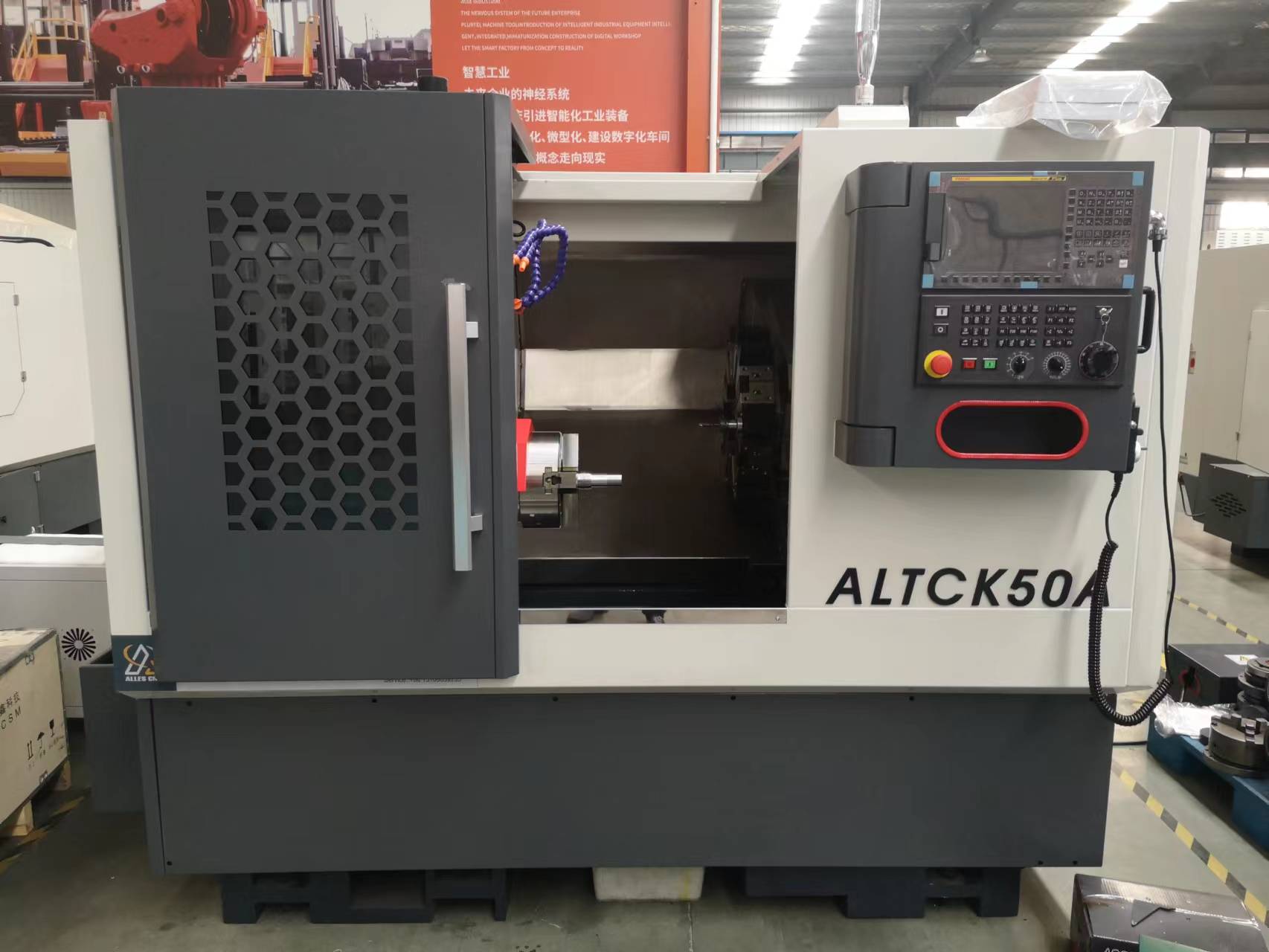

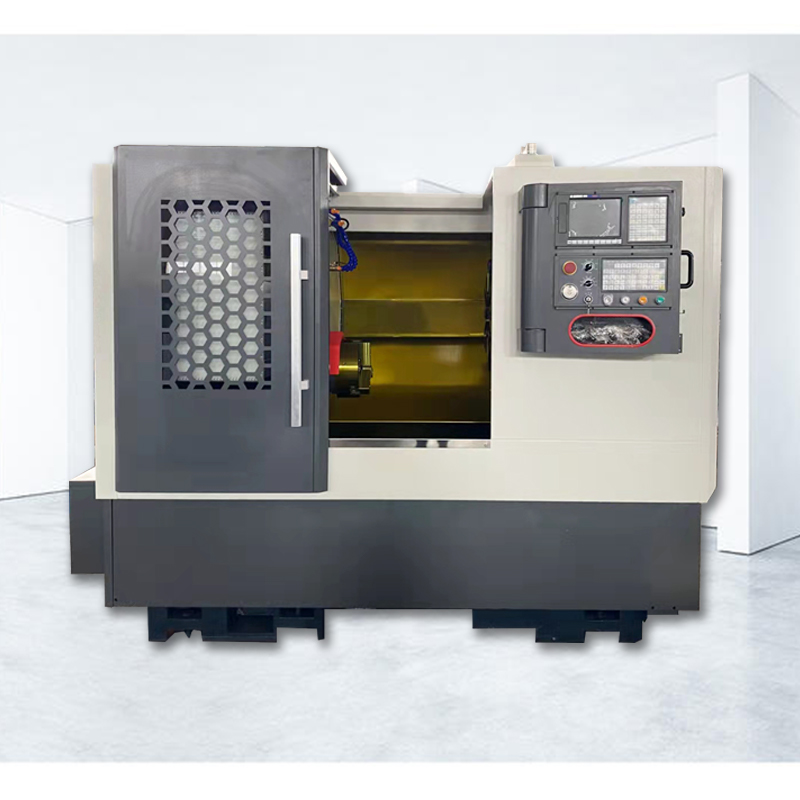

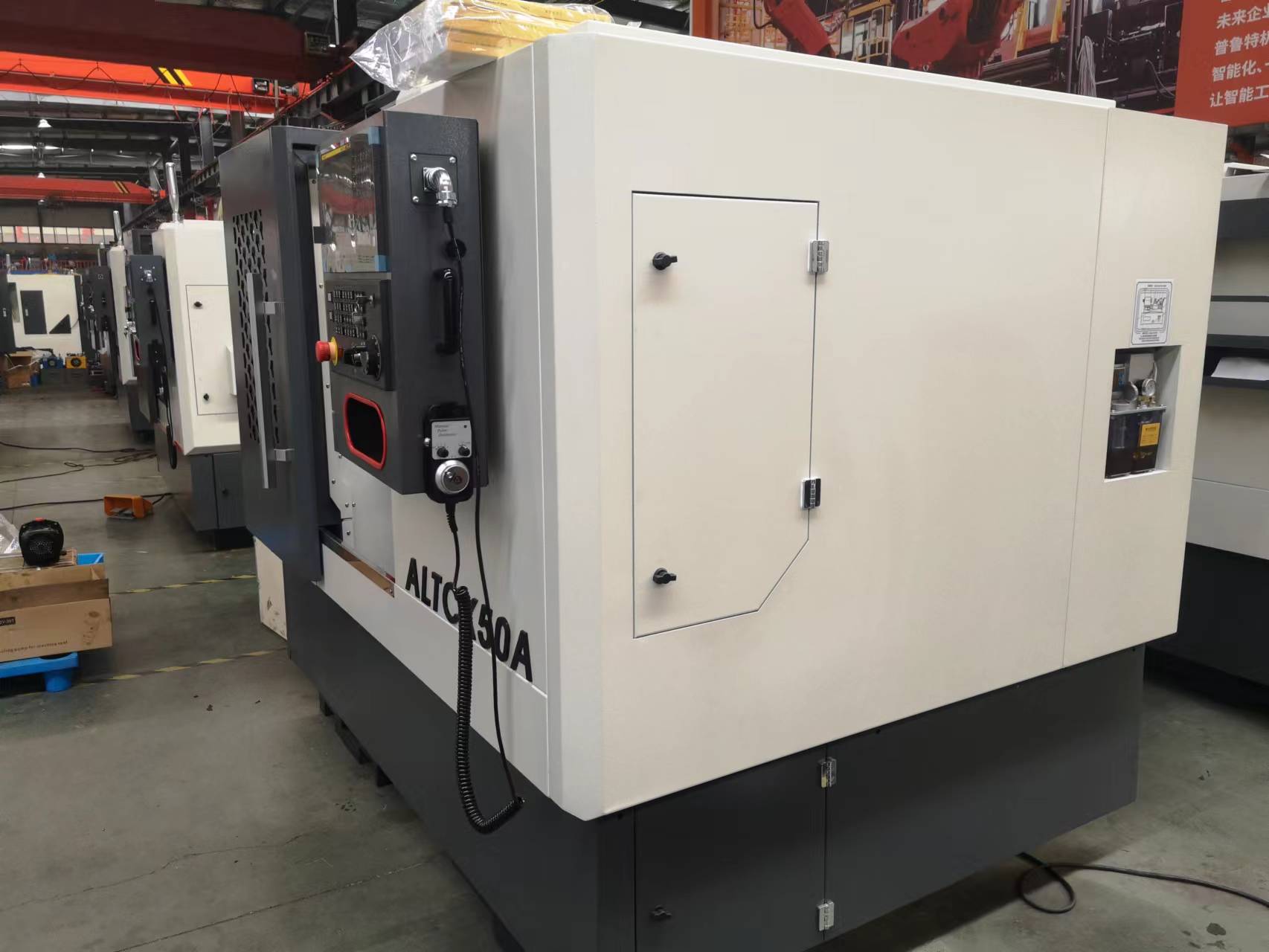

CNC lathe for metal ALTCK50A inclined bed CNC lathe

ALTCK50A Inclined bed line rail CNC lathes are used in automobiles, motorcycles, electronics, aerospace, military industry, petroleum and other industries to process the conical surface, arc surface, end surface and various metric and inch threads of rotary parts, batch, efficient and high Precise automatic processing adopts 45-degree high-rigidity integral bed and super-torque spindle to ensure high rigidity of the whole machine. The center of the spindle is close to the operator, making loading and unloading more convenient.

Product Description

The slant bed lathe is a high-speed, high-precision, high-reliability slant bed CNC lathe. Its main shaft is driven by a multi-ribbed belt, which can realize high-speed, high-speed, high-speed, and high-precision machine tools. Linear guide, with high rigidity, fast feeding speed and convenient excretion. The screw rods in the X and Z directions are set in the middle of the supporting plate, with uniform force, stable movement and fast speed; multiple hydraulic turrets, rapid and stable blade replacement, high precision, and nearby tools can be selected, with large tool loading capacity; Hydraulic tailstock, easy to use, completely sealed, no leakage, no water leakage, green and environmental protection.

Feature:

1. Automatic lathe is a high-speed, high-precision, high-reliability inclined bed machine tool. The main components such as the bed base, the bed, and the bedside box are all cast from high-strength materials to ensure the stability of the machine tool for long-term use.

2. CNC lathe for metal adopts a 45° overall inclined bed structure, and is equipped with high-precision preloaded Taiwan Shangyin linear rolling guides. The machine tool has high position accuracy, smooth chip removal, and is suitable for high-speed and high-precision machining.

3. CNC lathe high-speed, high-precision and high-rigidity shell-type spindle unit, servo spindle motor, can reach higher spindle speed. The spindle unit is assembled in a constant temperature room. After assembly, it has been run-in at a constant temperature for 72 hours, and then it has been tested for 72 hours after being installed on the machine to ensure the reliability of high-speed and high-precision performance.

4. Horizontal CNC Lathe adopts the tool arrangement method, which has fast tool change speed and high positioning accuracy. Adopting advanced centralized automatic lubrication device, timing and quantitative automatic intermittent lubrication, the work is stable and reliable.

5. It adopts full protection design, which is strong in amenity, unique in appearance, reliable in waterproof and anti-dust, and convenient in maintenance.

Application of slant bed lathe:

Mini metal lathe is suitable for automation equipment such as aerospace, automotive industry, precision molds, defense industry, shipbuilding, new energy, textile, electronics, medical and cutting-edge industries.

Video

Product Specifications:

Item	Unit	ALTCK50A
Max swing over bed	mm	Φ560
Max swing over cross slide	mm	Φ260
processing length	mm	330
spindle speed	rpm	3000
Spindle through hole	mm	66
Weight	KG	2600
Machine size	mm	2500×1700×1890
