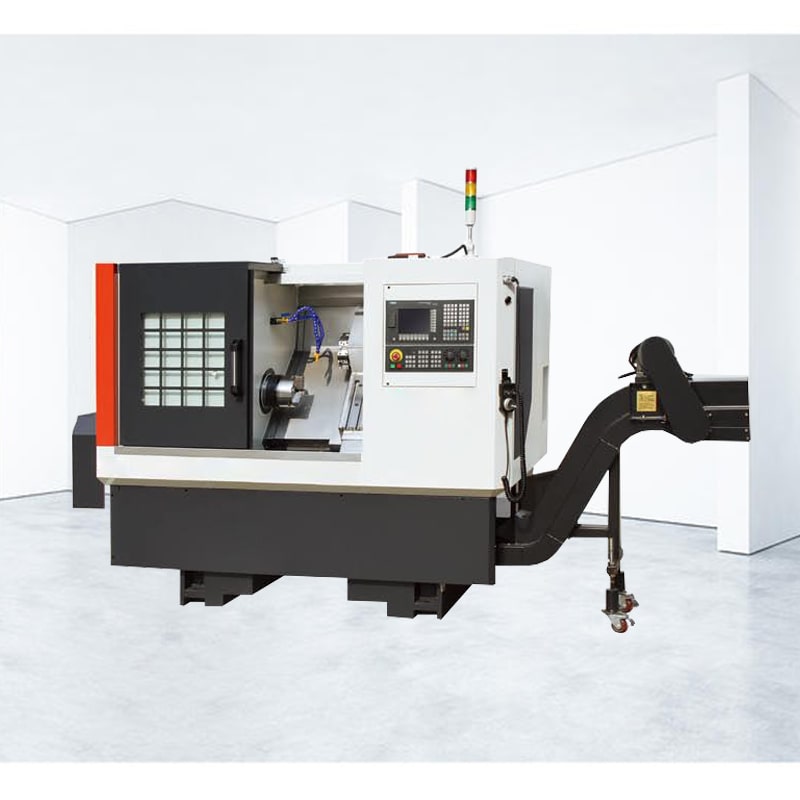

Slant bed cnc lathe ALTCK6340 automatic cnc lathe

Horizontal CNC Lathe is a high-precision, high-precision, high-efficiency CNC lathe, which is specially designed for turning processing. Adopting advanced numerical control technology and high-quality mechanical structure design, it can realize high-speed and high-precision machining, and is widely used in various manufacturing fields.

Product Description

Inclined bed with CNC has many functions such as fast positioning, automatic tool change, automatic turning tool switching, automatic measurement, etc., making the processing process more intelligent and automatic. And it adopts high-precision servo motor and imported linear guide rail to provide more accurate and stable motion control and positioning accuracy, which greatly improves the processing efficiency and processing quality.

CNC lathe has the characteristics of high rigidity, high stability, high precision, etc., anti-vibration, anti-deformation, and provides more reliable processing accuracy and production efficiency.

feature:

1. The linear rolling guide rail of the inclined bed CNC lathe meets the requirements of high speed and high efficiency, reduces frictional resistance and temperature rise deformation, improves machining accuracy, and can ensure the long-term stability of cutting machining accuracy.

2. The tool detection device can automatically input the position data of the tool tip into the numerical control system, which greatly reduces the adjustment time when changing the tool, and can also automatically compensate the wear of the tool tip.

3. The inclined bed CNC lathe adopts domestic or imported high-rigidity horizontal turret tool post, which has high positioning accuracy and small deformation in heavy cutting.

4. Inclined bed CNC lathe adopts an overall inclined bed structure, which can still maintain the stability of machine tool precision during heavy cutting.

5. The X and Z axis servo motors are directly connected to the precision ball screw through the elastic coupling. The precision is high. Distortion is minimized.

6. High-precision, high-rigidity programmable tailstock.

7. In the design of the inclined bed CNC lathe, the spindle box has taken corresponding measures to reduce the thermal deformation of the spindle, so that the relative stability of the spindle axis can be maintained when the spindle works for a long time.

8. The inclined bed CNC lathe adopts full guide rail protection, and the cooling box and chip conveyor are separated from the main machine to ensure the accuracy of the machine tool from the influence of thermal cutting.

Application of slant bed lathe:

Automatic cnc lathe is used in automobiles, motorcycles, electronics, aerospace, military, petroleum and other industries for batch, efficient and high-precision automatic processing of conical surfaces, arc surfaces, end faces and various metric and inch threads of rotary parts , using a 45-degree high-rigidity integral bed, a super-torque spindle, and Taiwan line rails to ensure the high rigidity of the machine. The center of the spindle is close to the operator, making loading and unloading more convenient.

Video

Product Specifications:

Item	Unit	ALTCK6340
Max.swing over bed	mm	Φ400
Max.swing over cross slide	mm	Φ140
Maximum processing length	mm	200
Spindle speed	rpm	4000
Spindle bore	mm	48
Weight	KG	2200
Machine size	mm	2200X1530X1780
