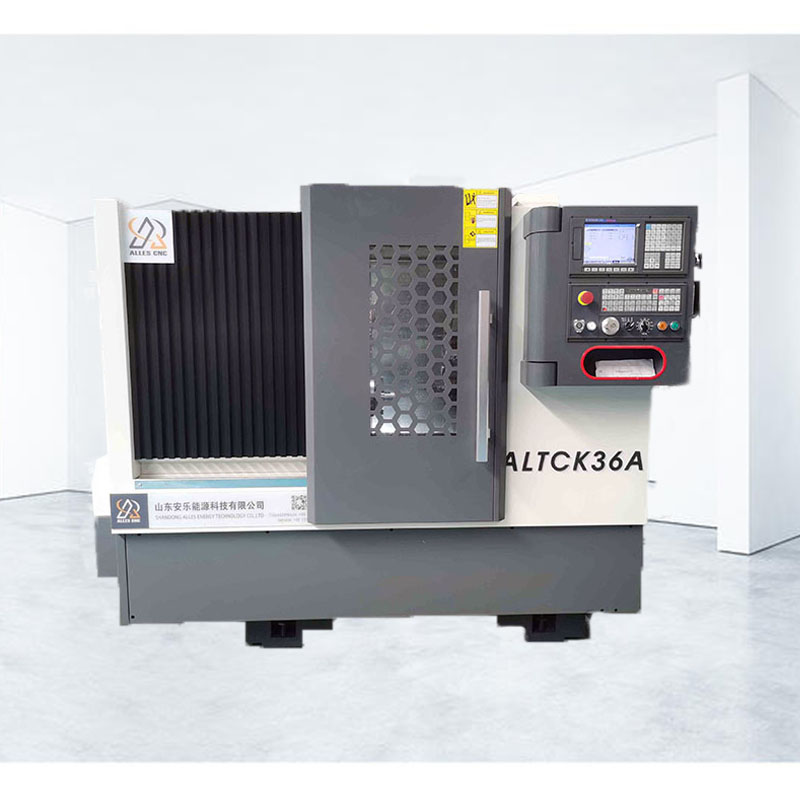

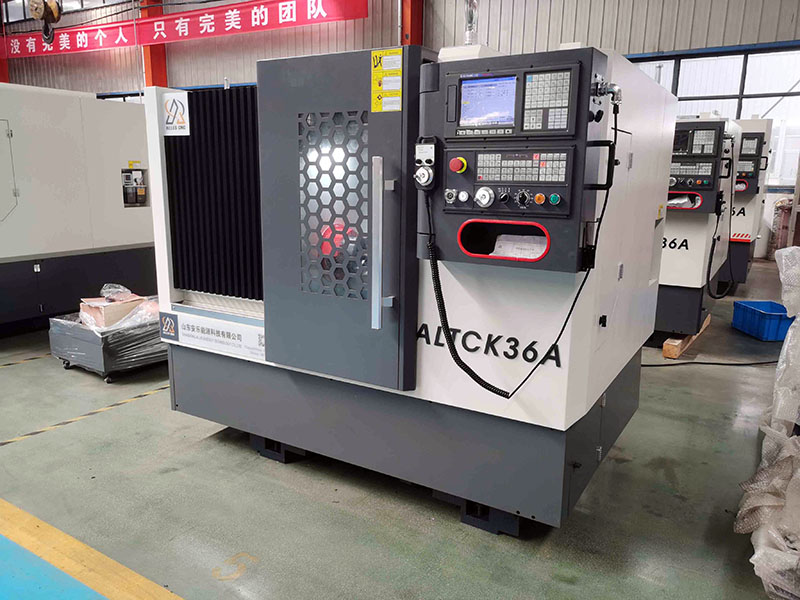

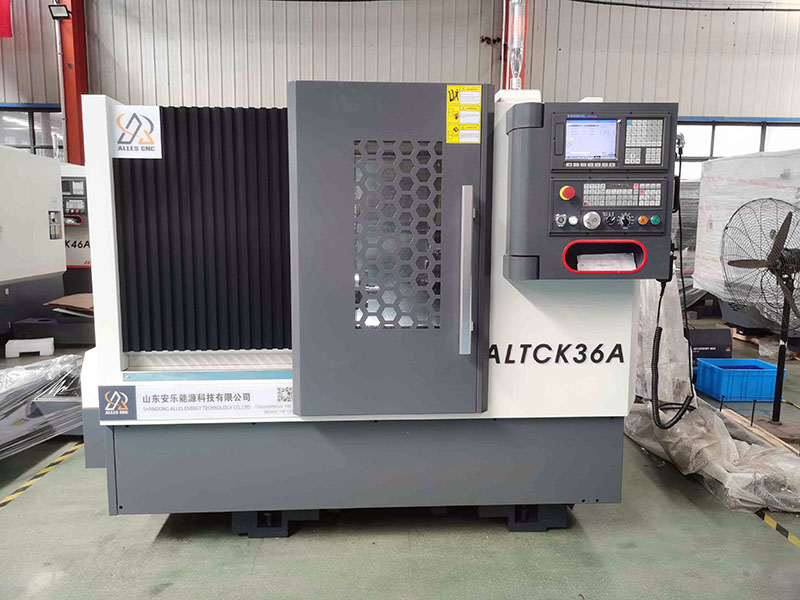

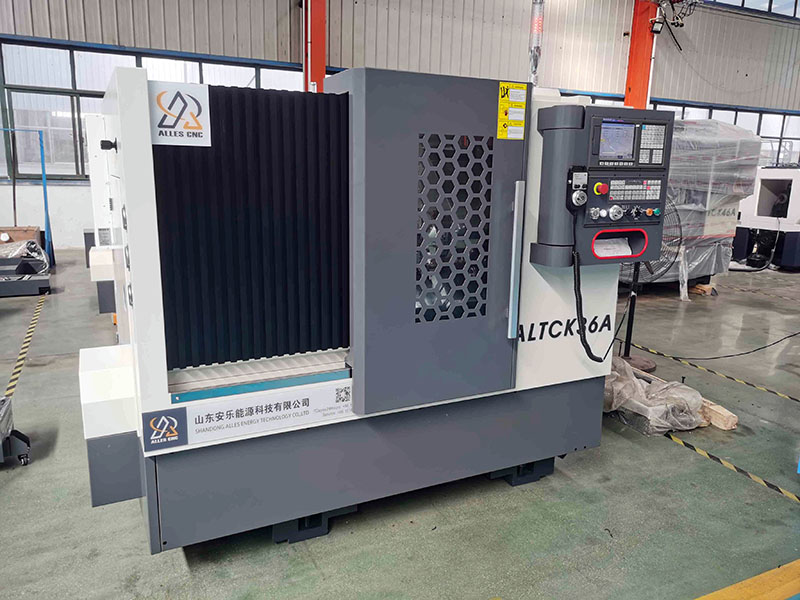

Inclined Bed CNC Lathe ALTCK36A CNC turning

Inclined bed with CNC ALTCK36A is a high-precision, high-efficiency CNC machine tool with advanced CNC technology and precise mechanical structure.

Product Description

CNC turning can complete various complex processing tasks. CNC lathe for metal adopts imported high-precision ball screw and guide rail, high-efficiency imported servo motor and quick tool change system. , conical surface, gear and other complex shapes.

Feature:

1. High precision: Inclined bed with CNC adopts high-precision imported ball screw and guide rail, which can ensure high-precision processing quality;

2. High efficiency: CNC turning adopts high-efficiency imported servo motor and quick tool change system, which has high processing efficiency and quick tool change;

3. Easy to operate: slant bed lathe adopts advanced numerical control system, has a good human-machine interface, and is easy to operate;

4. Multifunctional: CNC lathe for metal can realize the processing of complex shapes such as various threads, cylinders, spheres, cones, gears, etc.

Application of slant bed lathe:

CNC lathe ALTCK36A is widely used in aviation, aerospace, automobile, motorcycle, machinery manufacturing, instrumentation and other industries. CNC lathe for metal can be used in the processing and mass production of precision parts.

Video

Optional configuration of slant bed lathe ALTCK36A:

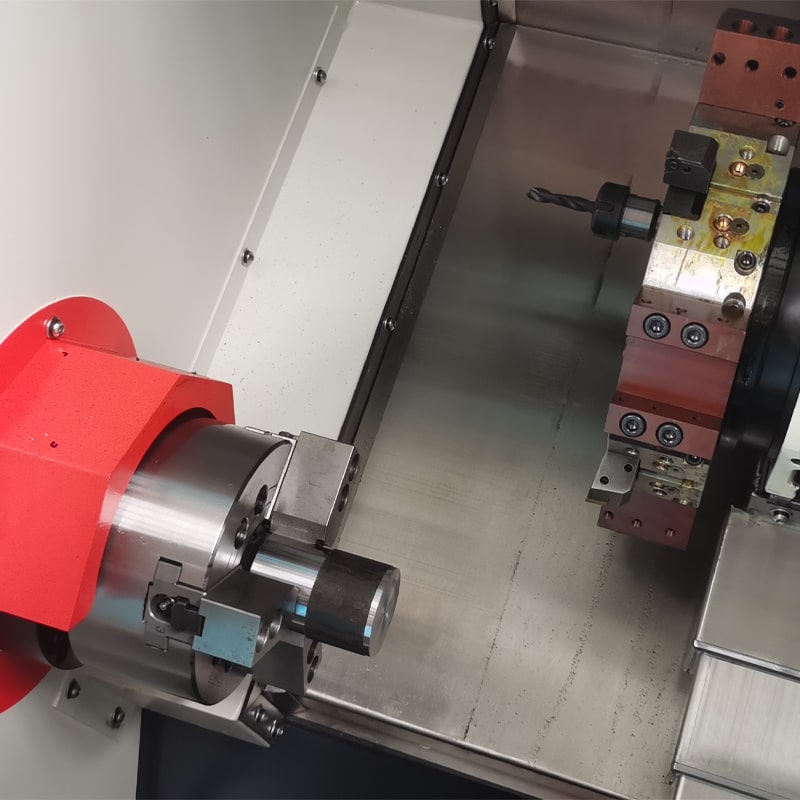

1. Spindle configuration:

High-speed spindle: slant bed lathe ALTCK36A can be equipped with a high-speed spindle, which has a higher speed range and is suitable for applications that require high-speed cutting and precision machining. High-speed spindle can improve machining efficiency and surface quality.

High-torque spindle: ALTCK36A can be equipped with a high-torque spindle. The high-torque spindle provides greater cutting capacity and stability for machining large workpieces and difficult-to-machine materials.

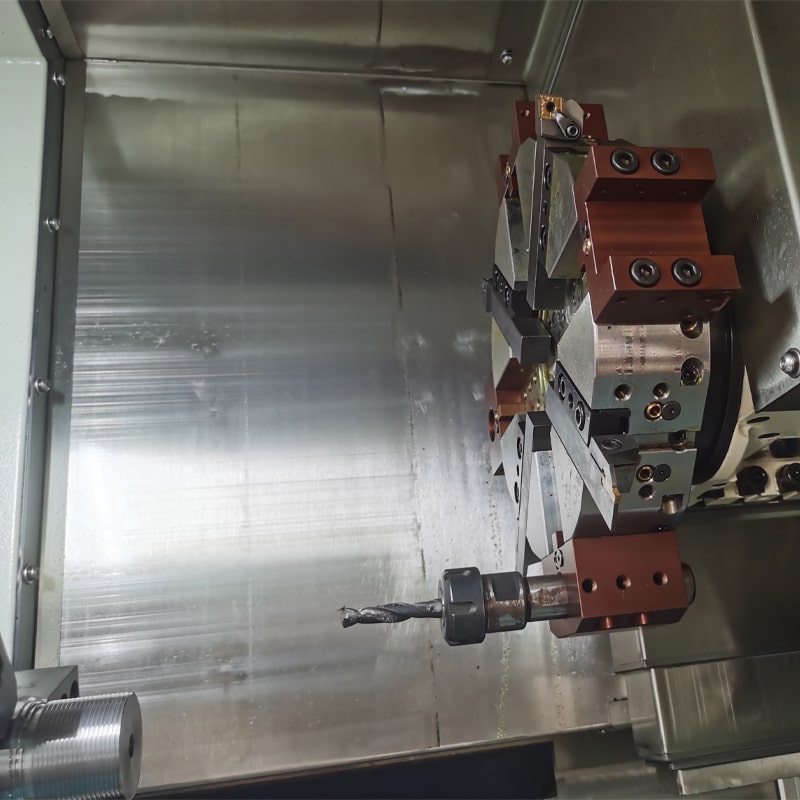

2. Turret configuration:

Automatic turret: The automatic turret can greatly shorten the tool change time, improve production efficiency, and is suitable for the processing needs of many different processes.

Double turret: The double turret system can load two different tools at the same time, reducing tool changing time and improving processing efficiency.

3. Control system configuration:

Advanced CNC system: Advanced CNC system can realize more advanced processing functions, such as thread processing, curve processing, etc., and provide more processing parameter adjustment options to meet complex processing needs.

Programming software: Programming software usually provides functions such as graphical programming interface and processing path simulation, which simplifies the programming process and improves operation efficiency.

4. Auxiliary equipment configuration:

Tool measurement system: slant bed lathe ALTCK36A can be equipped with a tool measurement system for automatic measurement and calibration of tool dimensions. The tool measuring system can improve the service life and machining accuracy of the tool, and reduce the time and error of manual measurement.

Coolant system: For applications that require continuous high-speed cutting, slant bed lathe ALTCK36A can be equipped with a high-efficiency coolant system. The coolant system can cool and lubricate the cutting area in time, maintain the stability of the machining process, and extend the life of the tool.

Product Specifications:

Item	Unit	ALTCK36A
Maximum upper turning diameter of bed	mm	Φ360
Maximum machining diameter on tool post	mm	Φ140
Maximum processing length	mm	300
Spindle speed	rpm	4000
Spindle hole diameter	mm	48
Weight	KG	2200
Machine size	mm	2200×1600×1850
