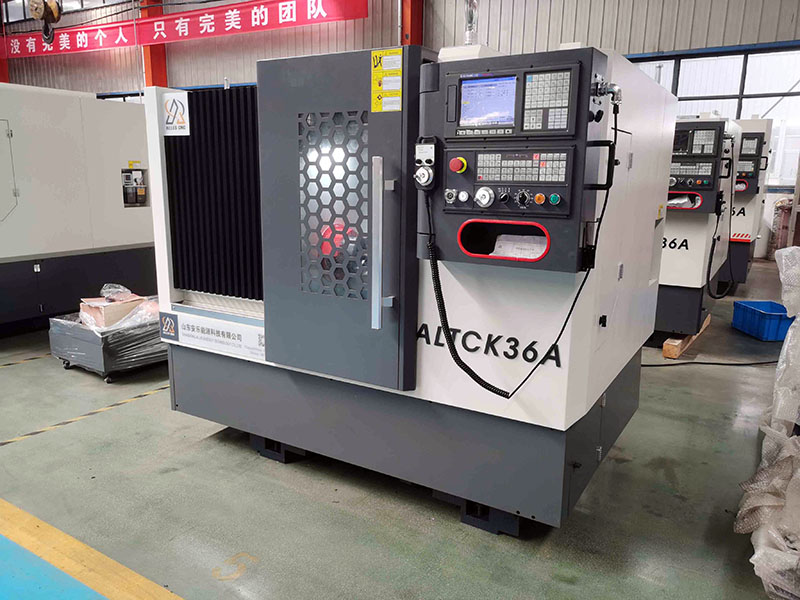

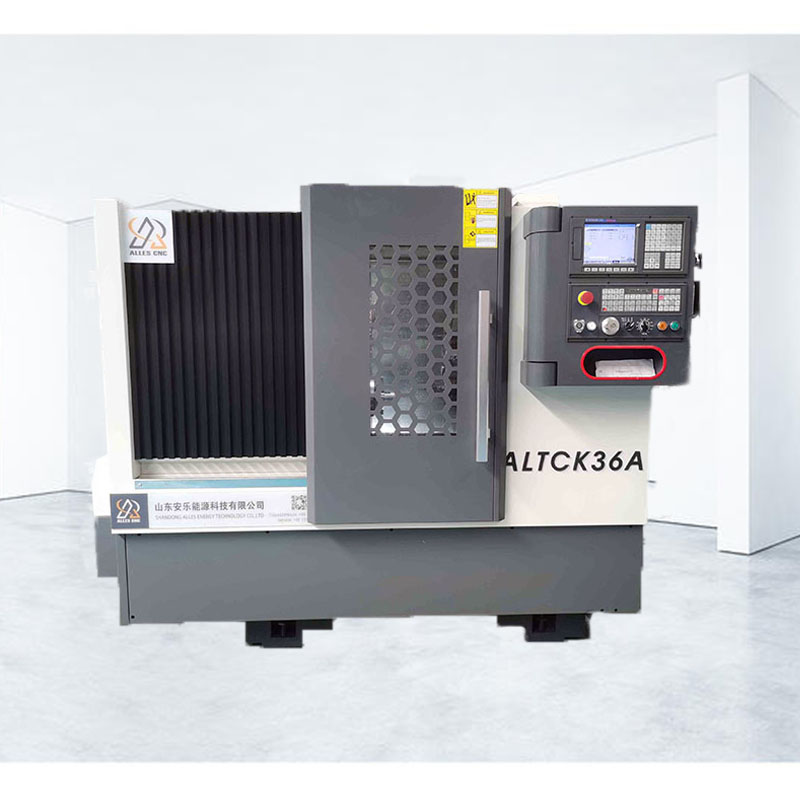

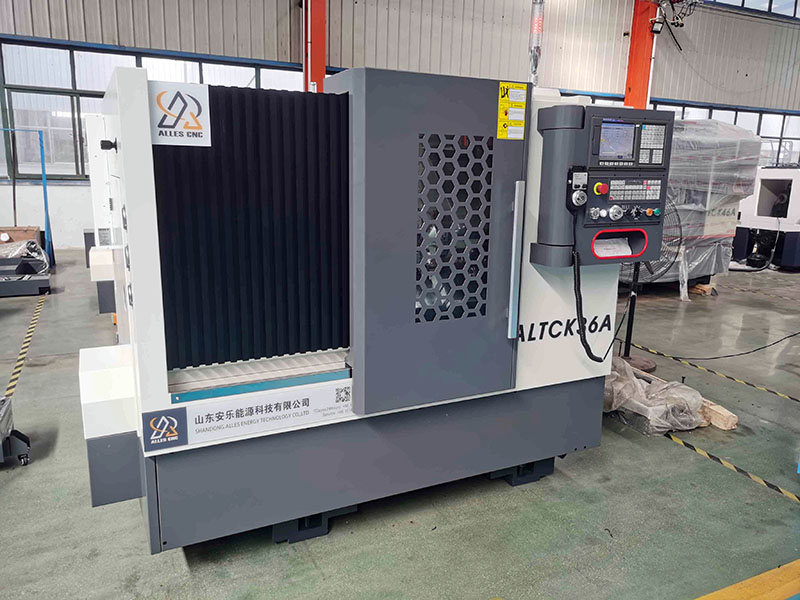

Slant bed lathe ALTCK36A Horizontal CNC Lathe

Horizontal CNC Lathe ALTCK36A manufactures transmission system parts such as gears, bearings and transmission chains to improve power transmission efficiency.

Product Description

ALTCK36A Slant bed lathe has been widely used in the auto parts processing industry due to its high precision, high efficiency and versatility. Horizontal CNC Lathe ALTCK36A processes automotive engine components such as cylinder blocks, crankshafts, camshafts and pistons.

Feature:

1. Slanted body structure: Slant bed lathe ALTCK36A adopts a slanted body structure, which provides excellent rigidity and stability and ensures high-precision processing results.

2. High-speed processing: Horizontal CNC Lathe equipment is equipped with a high-speed spindle and a high-speed feed system, which can quickly and efficiently complete the processing tasks of auto parts.

3. Versatility: ALTCK36A has multi-axis control and multi-tool tool holder, which can adapt to the processing needs of various complex parts and improve production efficiency.

4. Easy to operate: Horizontal CNC Lathe’s user-friendly interface and simplified operating system enable operators to easily master the equipment and improve production efficiency.

Application of slant bed lathe:

1. Automobile manufacturing: Horizontal CNC Lathe ALTCK36A can be used to process key components such as engine parts, braking systems, steering systems, transmission systems and chassis components.

2. Mold manufacturing: Slant bed lathe is used to manufacture molds and templates required for auto parts production.

3. Customized parts manufacturing: slant bed lathe can accurately process various auto parts according to customer requirements to meet the needs of different models and brands.

4. High-performance vehicles: Horizontal CNC Lathe In the field of high-performance vehicle manufacturing, ALTCK36A is used to manufacture high-performance engines and chassis components.

Video

Optional configuration of slant bed lathe ALTCK36A:

1. Spindle configuration:

High-speed spindle: slant bed lathe ALTCK36A can be equipped with a high-speed spindle, which has a higher speed range and is suitable for applications that require high-speed cutting and precision machining. High-speed spindle can improve machining efficiency and surface quality.

High-torque spindle: ALTCK36A can be equipped with a high-torque spindle. The high-torque spindle provides greater cutting capacity and stability for machining large workpieces and difficult-to-machine materials.

2. Turret configuration:

Automatic turret: The automatic turret can greatly shorten the tool change time, improve production efficiency, and is suitable for the processing needs of many different processes.

Double turret: The double turret system can load two different tools at the same time, reducing tool changing time and improving processing efficiency.

3. Control system configuration:

Advanced CNC system: Advanced CNC system can realize more advanced processing functions, such as thread processing, curve processing, etc., and provide more processing parameter adjustment options to meet complex processing needs.

Programming software: Programming software usually provides functions such as graphical programming interface and processing path simulation, which simplifies the programming process and improves operation efficiency.

4. Auxiliary equipment configuration:

Tool measurement system: slant bed lathe ALTCK36A can be equipped with a tool measurement system for automatic measurement and calibration of tool dimensions. The tool measuring system can improve the service life and machining accuracy of the tool, and reduce the time and error of manual measurement.

Coolant system: For applications that require continuous high-speed cutting, slant bed lathe ALTCK36A can be equipped with a high-efficiency coolant system. The coolant system can cool and lubricate the cutting area in time, maintain the stability of the machining process, and extend the life of the tool.

Product Specifications:

Item	Unit	ALTCK36A
Maximum upper turning diameter of bed	mm	Φ360
Maximum machining diameter on tool post	mm	Φ140
Maximum processing length	mm	300
Spindle speed	rpm	4000
Spindle hole diameter	mm	48
Weight	KG	2200
Machine size	mm	2200×1600×1850
