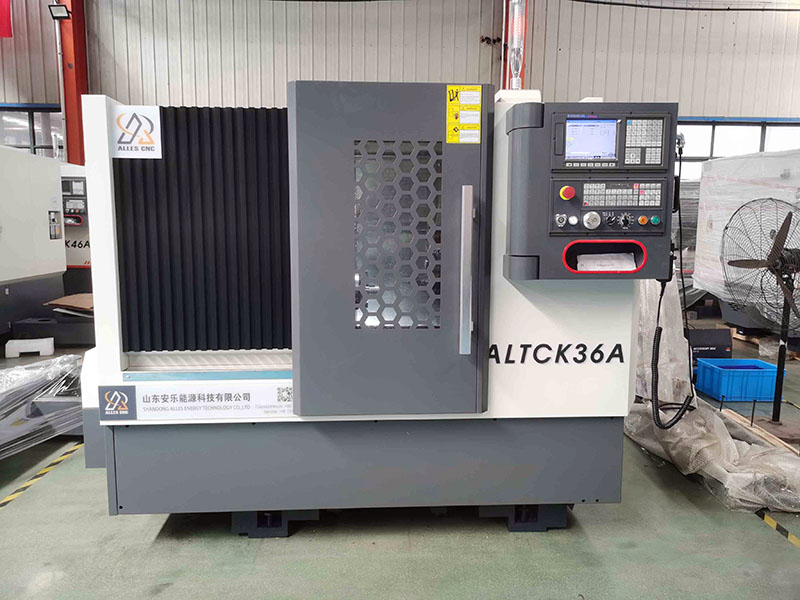

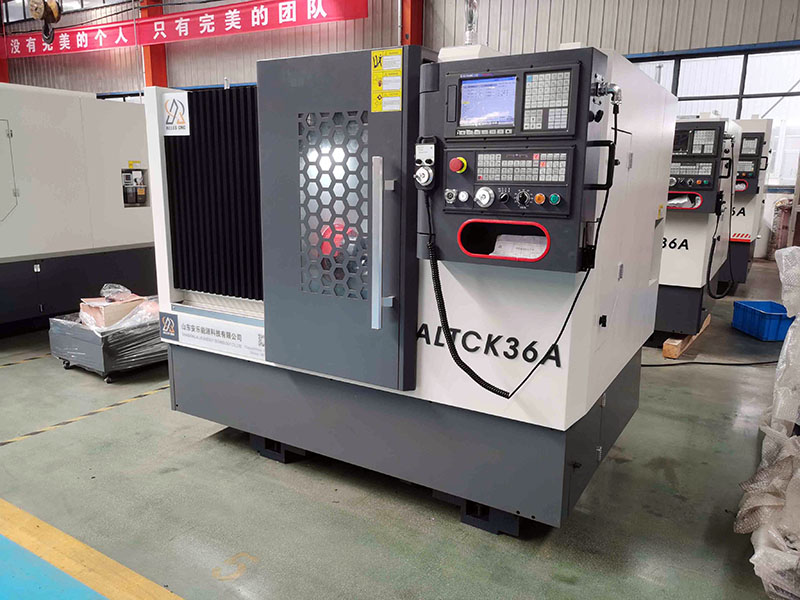

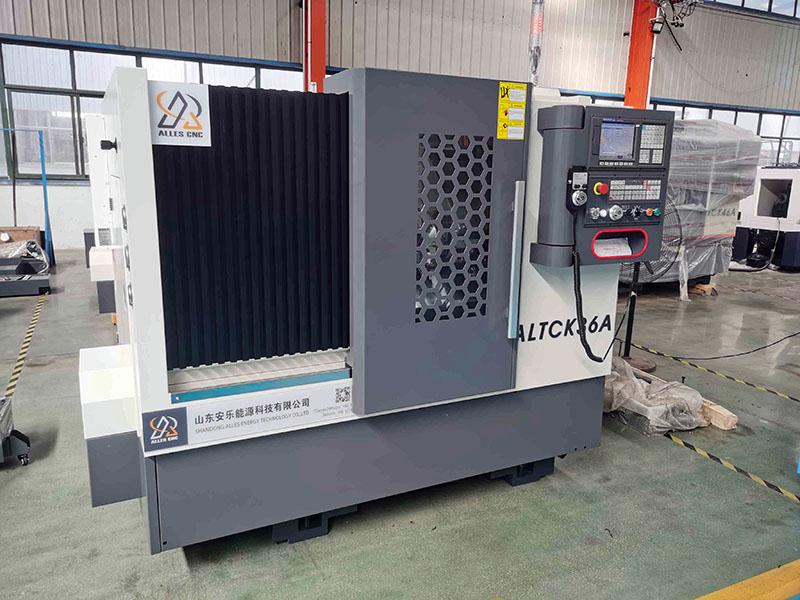

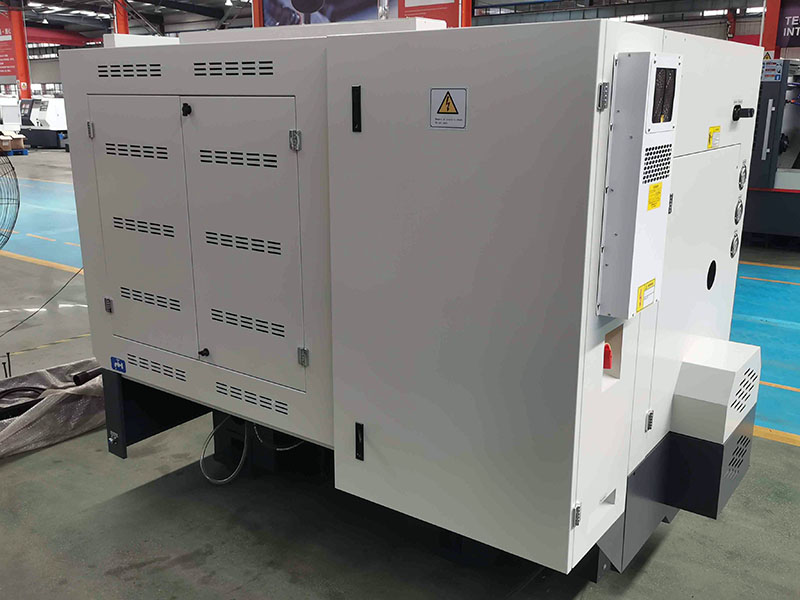

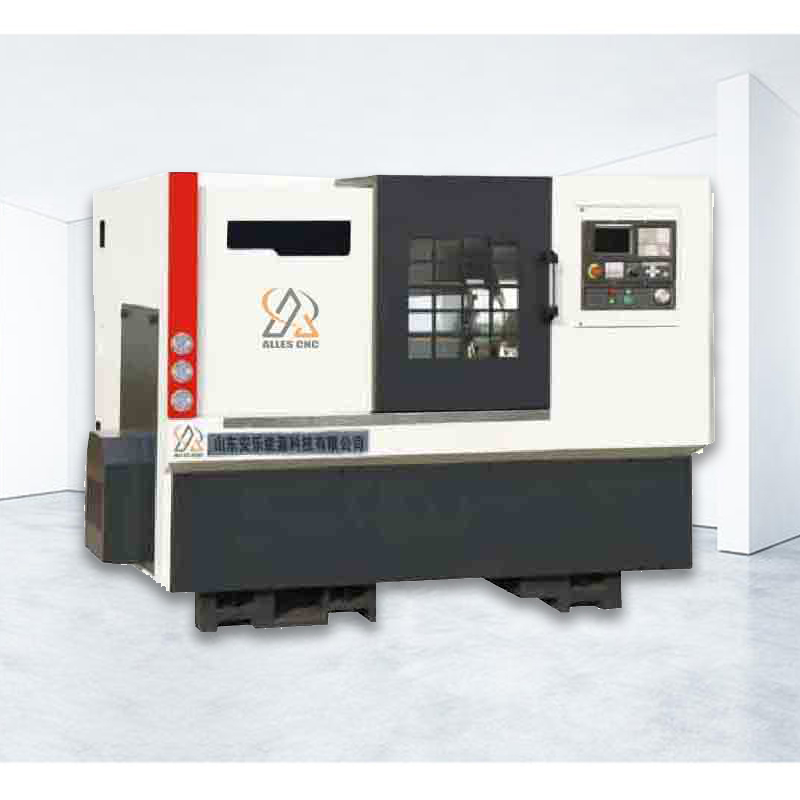

CNC Horizontal Lathe ALTCK36A slant bed cnc lathe machine
The Slant bed cnc lathe machine is protected by full guide rails, the cooling box and the chip conveyor are separated from the host machine, and the precision of the machine tool is not affected by thermal cutting.
The cnc lathe slant bed machine is most suitable for precision machining of various high-precision, multi-batch, complex-shaped parts used in aviation, electronics, clocks and other industries.
Product Description
Features of cnc lathe slant bed machine:
1.Good stability: Machine tools with inclined bed or flat bed and inclined guideway are generally used for oversized parts, because the corresponding parts of medium and large machine tools are also very large, especially the turret parts.
CNC lathe custom manufacturers use inclined guide rails mainly to overcome gravity and have better stability to improve the accuracy of slant bed cnc lathe, which can reflect the superiority of linear rail slant bed cnc lathe in some harsh environments.
Improve space utilization, slant bed cnc lathe machine live tool can effectively use space and greatly reduce the plane occupied by the machine tool.
Video
Video
2. Ease of chip removal: The inclined guide rail also facilitates the concentration of iron chips on the chip conveyor for automatic chip removal.
The iron scraps under cutting have high heat, and the accumulation on the guide rail will cause the guide rail to be heated and deformed, which will change the working accuracy.
In the design of CNC Lathe Machine Metal with inclined bed, the spindle box adopts corresponding measures to reduce the thermal deformation of the spindle, so that the relative stability of the spindle axis can be maintained when the spindle works for a long time.
Video
3. The CNC Lathe Machine Metal Horizontal of the inclined bed adopts full guide rail protection, the cooling box and the chip conveyor are separated from the host, and the machine tool accuracy is not affected by thermal cutting.
Turning Machine CNC Lathe linear rolling guide with inclined bed meets the requirements of high speed and high efficiency, reduces frictional resistance and temperature rise deformation, improves machining accuracy, and can maintain long-term stability of cutting machining accuracy.
Video
4. The tool detection device can automatically input the tool nose position data into the numerical control system, which greatly reduces the adjustment time when changing the tool, and can also automatically compensate the wear of the tool nose.
The inclined bed CNC lathe adopts a high-rigid horizontal turret tool holder, which has high positioning accuracy and small deformation during heavy cutting.
Video
Application of High Precision CNC Lathe in the Automotive Industry
1. Application scope of CNC Lathe Turning in the automotive industry
The main body of CNC Lathe Machine Horizontal consumption in the automotive industry is divided into two levels.
One is the four lines for the production of complete automobiles, namely stamping, welding, painting and final assembly lines;
The second is the processing of auto parts including engines, transmissions, steering systems, braking systems, transmission systems, and suspension systems.
2. Application of Automatic CNC Lathe in automobile manufacturing
CNC Lathe has high precision, stable performance and low failure rate, and is favored by users in the automotive industry. CNC Mini Lathe is widely used in the automotive manufacturing industry and is in a leading position.
CNC Lathe Metal is mainly used to process shaft parts and disc parts in the automobile manufacturing industry.
Such as crankshafts, camshafts, flywheels, front hubs, rear hubs, brake discs, one shaft, two shafts, gears, gear sleeves, differential housings, etc., and shaft parts and disc parts account for the main body of auto parts.
Video
| Section | Item | ALTCK36A |
|---|---|---|
| The main parameters |
Maximum upper turning diameter of bed
|
Φ360mm
|
| Maximum machining diameter on tool post | Φ140mm | |
| Maximum processing length | 300 | |
| Spindle motor power | 3.7/5.5KW | |
| Spindle speed | 4000pm | |
| Spindle hole diameter | Φ48 | |
| Bar diameter | Φ41 | |
| Tail stock part |
Sleeve diameter
|
Φ65
|
| Sleeve stroke | 60 | |
| Maximum stroke of tailstock | 200 | |
| Shape |
Length*width*height (mm)
|
2200×1600×1850
|
| Weight | Weight (approximate weight) | 2200kg |
