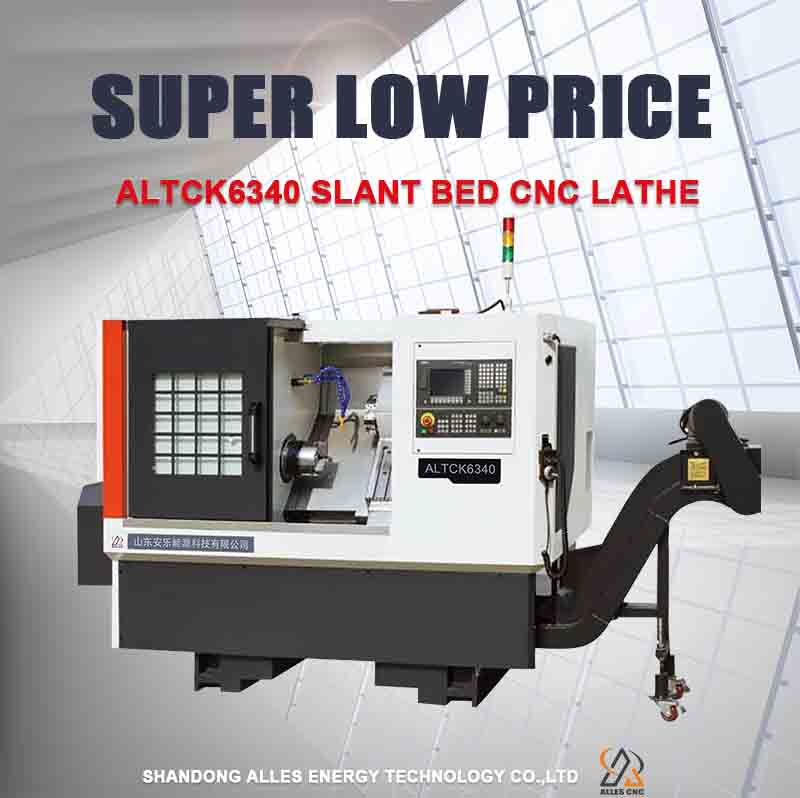

ALTCK6340 Horizontal Slant Bed CNC Lathe for Metal
Flat bed/45 degrees slant bed CNC lathe
High-precision Taiwan guide rail
Chip conveying capacity is large and convenient, customer could choose
chip conveying in the right or in the back
Spindle unit has two types, the heavy cutting type and the high speed
Product Description
horizontal Slant Bed CNC Lathe for Metal
Slant bed CNC lathe is widely used in heavy turning, and its common use is to process workpieces such as complex geometries, short shafts, and discs. In addition, it can also process various metric or imperial internal and external threads.
Technology Parameter
| Specifications | Unit | ALTCK6340 |
| Max. swing over bed | mm | Φ320 |
| Swing over cross slide | mm | Φ110 |
| Max. processing length | mm | 250 |
| X/Z axis travel | mm | 300/250 |
| Machine dimension(L×W×H) | mm | 1920×1350×1700 |
| Net. weight(about) | kg | 2600 |
Slant Bed CNC Lathe Advantages
Higher accuracy Taiwan linear guideways
Higher speed spindle unit,Optional homemade spindle
Higher rigidity cast iron
Integrated automatic lubrication
One-piece Casting slant bed CNC lathe
ALTCK6340 Horizontal CNC Lathe use
This machine is mainly used for processing various shaft, disk parts, turning can be all kinds of screw thread, arc, cone and plane of internal and external surface, can satisfy the ferrous and nonferrous metals the speed requirement of high-speed chip. Suitable for cars, motorcycles, electronics, aerospace, military industry and other industries to high efficiency, large quantity and high precision of parts processing. Machining precision can reach level IT6.
ALTCK6340 CNC Lathe Machining
Factory Display
ALTCK50A Series Of After Sales
PRE SALE SERVICE
1)Provide corresponding guidance and equipment information according to customer development needs；
2)To solve the problems raised by customers, from the feasibility and the development needs of the local industries, formulate solutions;
AFTER-SALE SERVICE
1)The seller provides one time free installation and training in buyer’s factory. Seller pays for the airplane tickets and salary for engineers, buyer should provide accommodation and food to engineers.
2)The seller will provide technical guide’s e-mail, telephone, Wechat, Whatsapp and so on.
3)The seller should pay for the travel expense if local service needed within warranty time.
You May Also Like

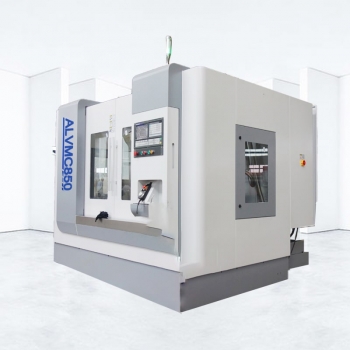

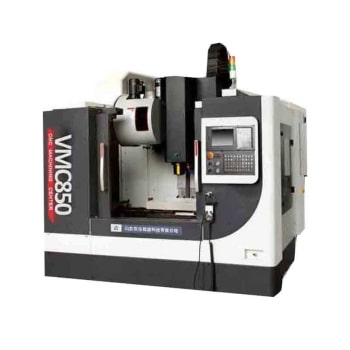

Vertical Machining Center for Bearings
